Harmar EPL Enclosed CPL 750 lb Capacity

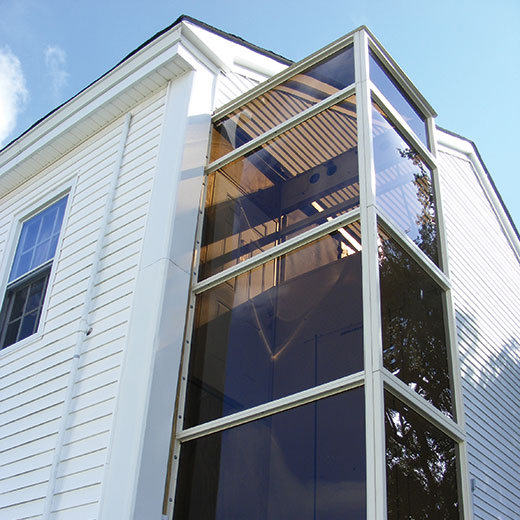

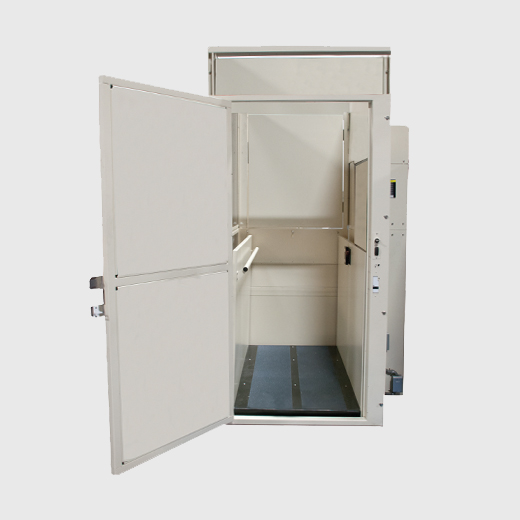

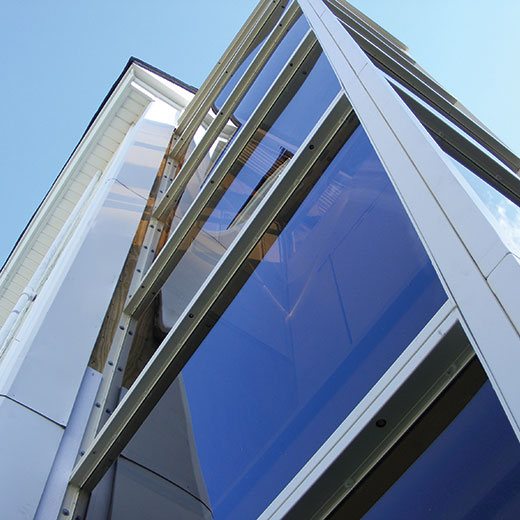

This self-contained Enclosed Platform is built to Harmar’s exacting VPL standards with powder coated steel enclosure panels, providing vertical access indoors or out, with up to a 171″ rise.

Categories: ,

Description

Indoors, they offer a self-contained, neater appearance and outdoors provide weather protection. Either way, the ready-to-install design saves installation time and does not require modifications to structures or landscaping.

Features

  • Constant pressure paddle switch with emergency stop (key switch optional)
  • Fixed or pit-mounted ramp provides easy entry when lift is lowered and additional stability when lift is raised
  • Enclosure can be assembled from the lift platform

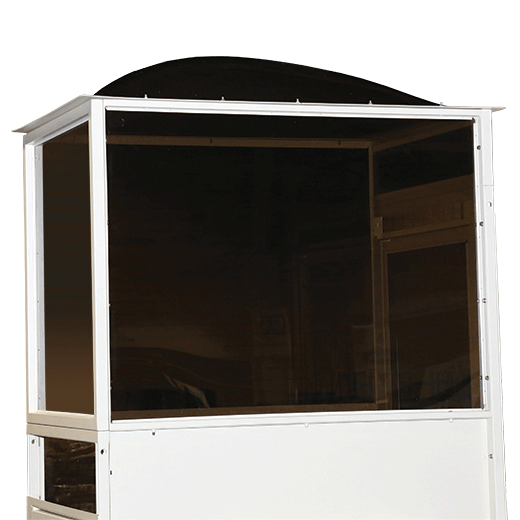

  • Options: Dome roof key locks, Interior ventilation or lighting

Specifications

  • Weight Capacity
    750 lb (340 kg)
  • Platform Size
    36″ x 60″ with 42″ high guard panels + grab rails with stationary ramp
  • Speed
    10 FPM
  • Drive System
    • Belt driven ball screw
    • 90 V DC 1/3 hp motor with brake
    • Optional: 24 VDC battery powered unit
  • Power
    120V AC 15 A
    Optional: 240V AC
  • Outdoor
    Yes
  • Incline Limits
    – NA –
  • Footprint
    54″ x 65″
  • Controls – Constant pressure paddle switch with emergency stop
    Optional: Key Switch
  • Safety Design – ASME A18.1, Section 2 – Vertical Platform Lifts
  • Standards – CSA B44.1 / ASME A17.5 – Elevator and Escalator Equipment
  • Safety Features
    • Final Limit Switch
    • Ball Nut Safety Backup
    • Belt Monitor
    • Non-Skid Surface
    • Manual Lowering Device
    • Emergency Stop Button
    • EMIs at Landings
    • Grab Rail
  • Warranty
    2-Year Parts
    1-Year Outdoor
