Description

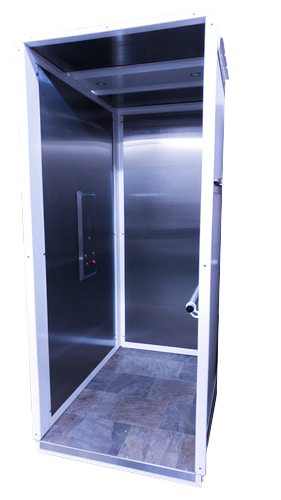

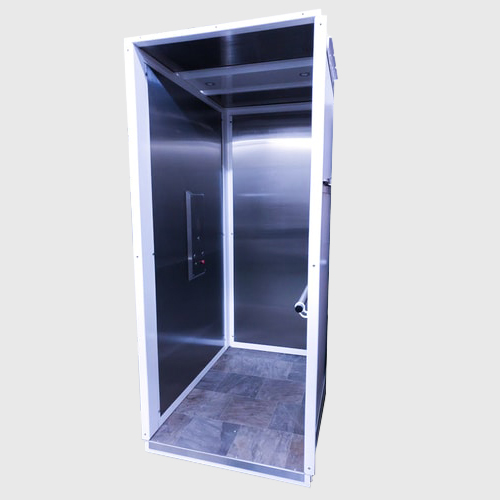

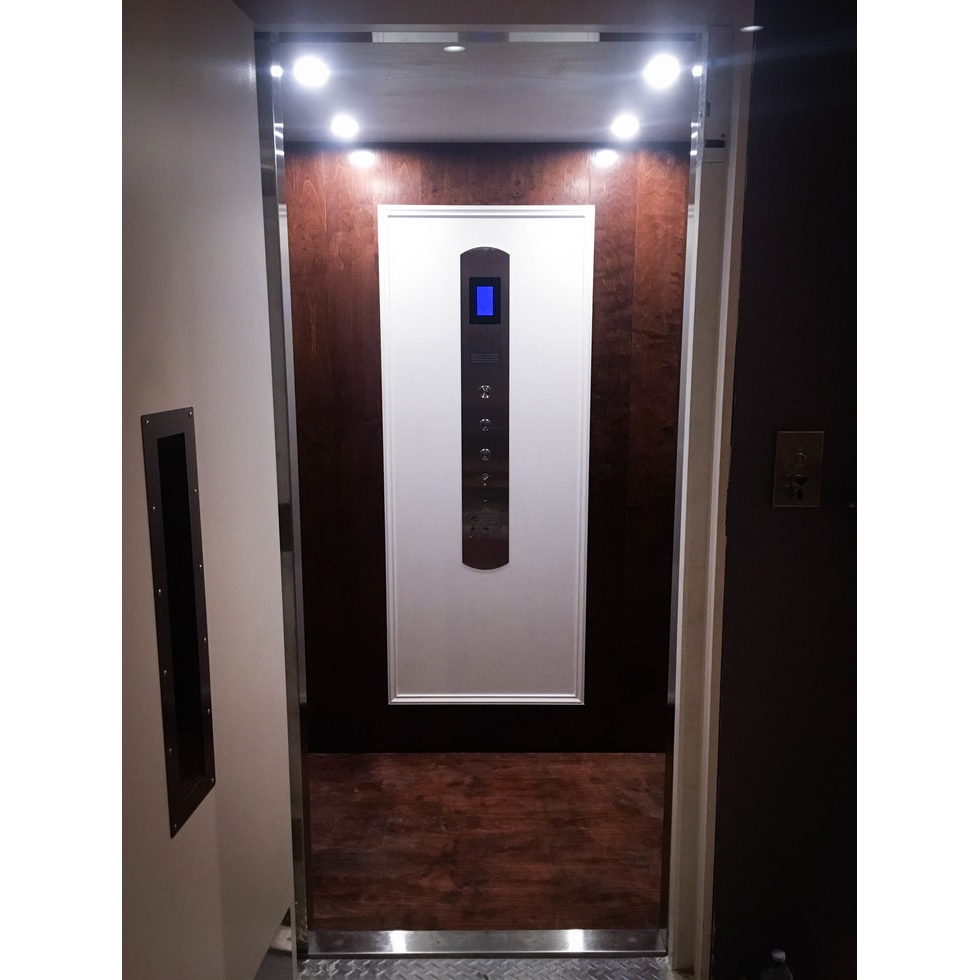

The Atlas AR-130 Model is equipped with the quietest drive type available that offers a comfortable run: A cable and drum mechanism. Also, one of the smallest footprint of the industry offers the possibility to reduce the elevator shaft dimension to a minimum, effectively taking up less space in the house and usually requires less installation time.
Features
Easy to install – fast – With our qualified technicians and short delivery times, your elevator can be installed quickly and safely.
The right elevator for your home or building – The closed shaft platform lift allows for a gentle vertical travel of up to 4 floors.
Peace of mind – Manufactured in North-America, it meets CSA-B613-00 and CSA-B355-15 standards.
Simple integration – Integration is quick and simple as a result of not needing a mechanical room, drain or overhead clearance.
Basic Parameters
Drive System – Traction Cables
Maximum Travel – Up to 276 inches (701 cm)
Pit Depth – 4 inches (25 mm)
Motor – 1 HP, 24VDC (Optional 110 VAC)
Travel Speed – 12 FPM (0.06 m/s)
Controls – Constant Pressure Rocker Switch with E-Stop
Maximum Capacity – Up to 750 lbs (340 kg)
Configurations – 0 degree, 90 degree and 180 degree
Codes & Regulations – CSA B6130-00, B355-09, ASME 17.1, ASME 18.1
