Description
Harmar Sierra incline platform lift – IL500 is ideal for transporting a user and their manual wheelchair up a straight stairway. Sierra IL500 comes with patented worm drive which is energy efficient and needs no messy grease or lubricants. Sierra platform lift has safety sensors on carriage and platform which helps stop the lift instantly at obstacles.
Features
- 500 lbs. capacity
- Emergency stop button
- Intended for residential use only
- Lightweight for one-person installation
- 13″ wide when folded, thus aid in saving space
- An optional free-standing post kit allows a wall-free installation, with the main carry load supported by step brackets
Additional track available. (Includes track, handrail, mounting brackets) Please call us for specific details…
Specifications
| Harmar Sierra incline platform lift – IL500 | |
| Weight capacity | 500 lbs. |
| Drive | Rack and worm gear / 24 VDC 1/8 HP motor with brake |
| Power supply | 120 VAC 15 A grounded circuit |
| Control circuit | 24 VDC |
| 25″ x 36″ | |

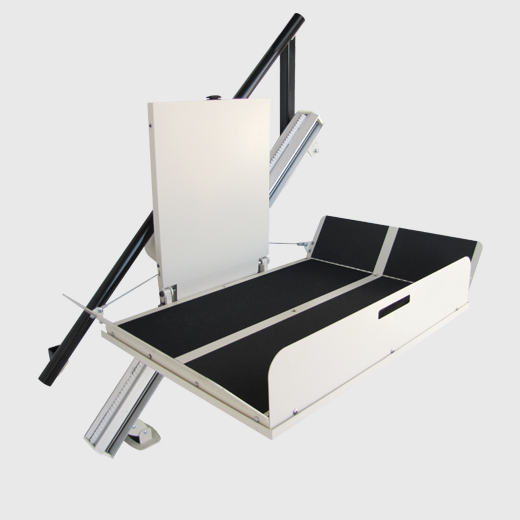

| Platform | Manual fold, gas shock assisted |
| Power folding ramps for entry and exit | |
| Folded width | 13″ folded |
| Travel | 40′ maximum |
| Speed | 14′ per minute |
| Controls | Constant pressure rocker switch on platform Infrared Call / Send Control |
