Description
This product is available for sale in our local service area only.

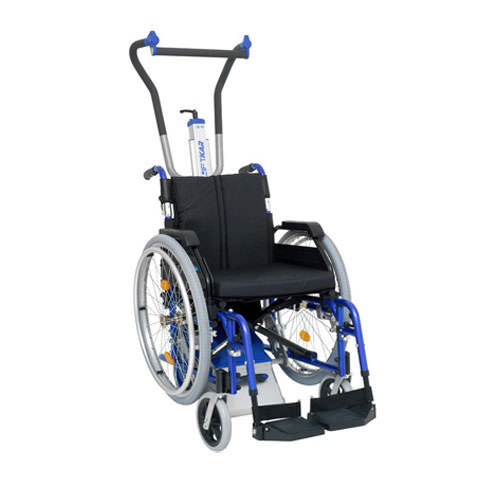

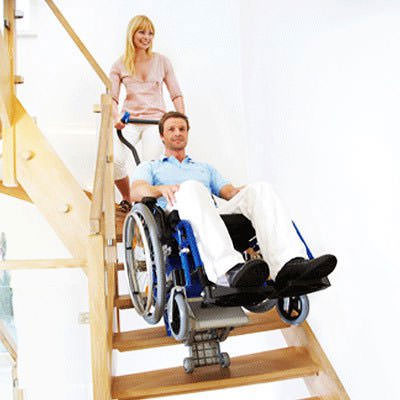

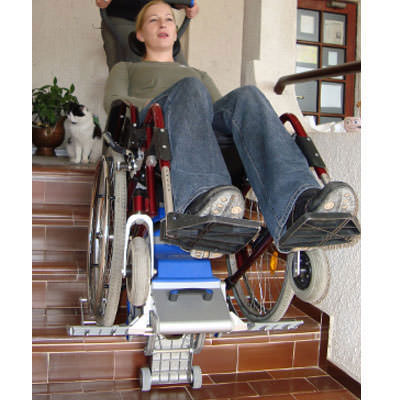

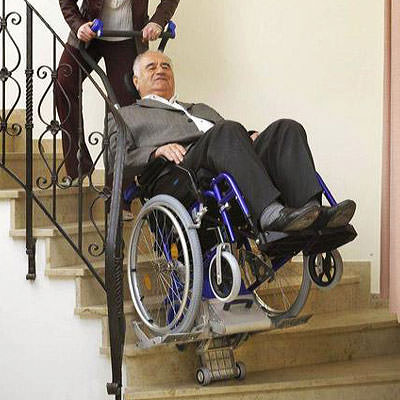

Liftkar PT-U is a manual wheelchair aid, in which the wheelchair is rolled onto its platforms and locked into place. The lifting arm lifts the passenger up and down the stairs while the attendant guides the unit.
Main wheels: PT-U Stair Climber comes with Non-marking grey tires for extremely smooth operation. All models have a diameter of 7.87”. (Outer track width 11.69”).
Support wheels: PT-U Stair Climber feature non-marking grey tires and are permanently braked with diameter 3.14”.
Range per recharge: This depends a lot on weight of passengers and whether they are traveling up or down. However, between 300 and 500 steps can be specified as a rough guide. If the stair climber is in constant use, (e.g. professional mobility services) then a replacement battery pack can be fitted at any time. A mobile charger is also available to rapidly charge the battery pack during the car journey.
Features
- Electronic overload protection
- Mechanical overload protection (sliding hub)
Sizing :
| Liftkar PT-U wheelchair stair climber | |
| Lifting capacity | 352 lbs. including wheelchair |
| Total weight | 60.72 lbs. |
| Heaviest part | 36.74 lbs. climbing unit with platforms |
| Overall height | 44.49″ |
| Overall depth | 15.16″ |
| Landing requirement | 43.3″ x 35.4″ |
| Maximum step height | 8.25″ |
| Battery pack voltage and capacity | 24 VDC 5.2 Ah |
| Inside frame width of wheelchair | Minimum 12.6″ |
| Outer track width | 11.69″ |
| Overall width | |
| 29.92″ | with platforms down |
| 15.55″ | with platform up |
| 18.98″ | in handle unit |
| Climbing speed | |
| Level I | 10 Steps per minute |
| Level II | 14 Steps per minute |
| Level III | 18 Steps per minute |
| Three speeds can be selected on the control cluster | |
