Description
This product is available for sale in our local service area only.

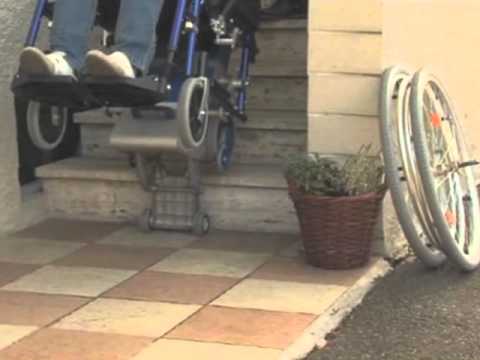

Liftkar PT-A wheelchair stair climber is ideal for uses quick release wheelchairs. PT-A Wheelchair Aid climbs narrow and winding stairs with ease. Keep the Liftkar PT-A attached after the wheels are back on and move around freely in your wheelchair.
Main wheels: PT-U Stair Climber comes with Non-marking grey tires for extremely smooth operation. All models have a diameter of 7.87”. (Outer track width 11.69”).
Support wheels: PT-U Stair Climber feature non-marking grey tires and are permanently braked with diameter 3.14”.
Range per recharge: This depends a lot on weight of passengers and whether they are travelling up or down. However, between 300 and 500 steps can be specified as a rough guide. If the stair climber is in constant use, (e.g. professional mobility services) then a replacement battery pack can be fitted at any time. A mobile charger is also available to rapidly charge the battery pack during the car journey.
Features
- Narrow unit is ideal for narrow staircases and tight spaces
- Automatic Braking System
- Intuitive Operation
- Ergonomic Design
- Lightweight and Portable
- Suitable for Slopes and Ramps
- Non-Marking Tires
Specifications
| Liftkar PT-A wheelchair stair climber | |
| Lifting capacity | 352 lbs. including wheelchair |
| Total weight | 53.34 lbs. |
| Heaviest part | 33.44 lbs. climbing unit |
| Overall height | 44.49″ |
| Overall depth | 15.16″ |
| Overall width | 18.98″ without wheelchair |
| Landing requirement | 35.4″ x 35.4″ |
| Maximum step height | 8.25″ |
| Battery pack voltage and capacity | 24 VDC 5.2 Ah |
| Inside Frame width of wheelchair | Minimum 12.6″ |
| Outer track width | 11.69″ |
| Climbing speed | |
| Level I | 10 Steps per minute |
| Level II | 14 Steps per minute |
| Level III | 18 Steps per minute |
| Three speeds can be selected on the control cluster | |
Reviews
There are no reviews yet.
