Description

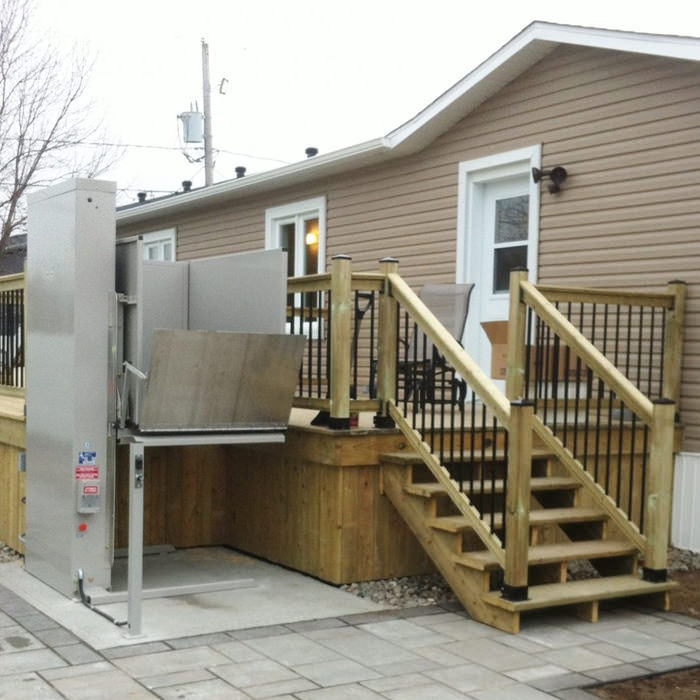

Atlas Vista 613 vertical platform lift is a wheelchair lift which provides complete autonomy for wheelchairs and their passengers. Intended for outdoor or indoor public use, it offers smooth vertical traveling for a maximum of one floor. Atlas vertical commercial wheelchair lift is designed for both interior or exterior.
Vehicle type
- Elevator platform for one person in a wheelchair – floor dimensions : 34″ x 54″
- Elevator platform for one person in a wheelchair and one helper – floor dimensions: 34″ x 60″
- Other dimensions that meet the requirements of the B355-09 standard are available on special request
Device category
- Vertical lift, open shaft
- Commercial and residential
- Wheelchair lift, outdoor and indoor use
Features
- Battery powered, works even if there’s a power outage
- Emergency stop switch on platform for security at all time
- Weather-resistant design for durability under any condition
- Safety panel under the platform floor for obstruction detection
- Automatic self-lowering folding ramp for simple boarding and exiting
- Constant pressure rocker switch inside the platform for easy operation
- Acme screw direct drive provides the smoothest and quietest lift on the market
Sizing :
| Atlas Vista 613 vertical platform lift | |
| Rated load | 750 lbs., 1000 lbs. |
| Speed | 12 fpm (0.07 m/s) |
| Drive | Direct drive ACME screw |
| Power | 24v DC (1.5 HP motor) |
| 120v AC (1.5 HP motor) | |
| Lift heights | 0 – 98″ |
| Platform | 34″ – 36″ W x 54″ x 60″ L |
| Panel guards | 42″ H galvanized steel panel |
| Floor | Non-skid (Epoxy crushed and recycled tires) |
| Controls | Constant pressure rocker switch with keylock |
| Safety | Security under pan, emergency stop switch |
| Std code | ASME 18.1., ASME 17.5, CSA B355, CSA B613 |
