Atlas AC-105

Description

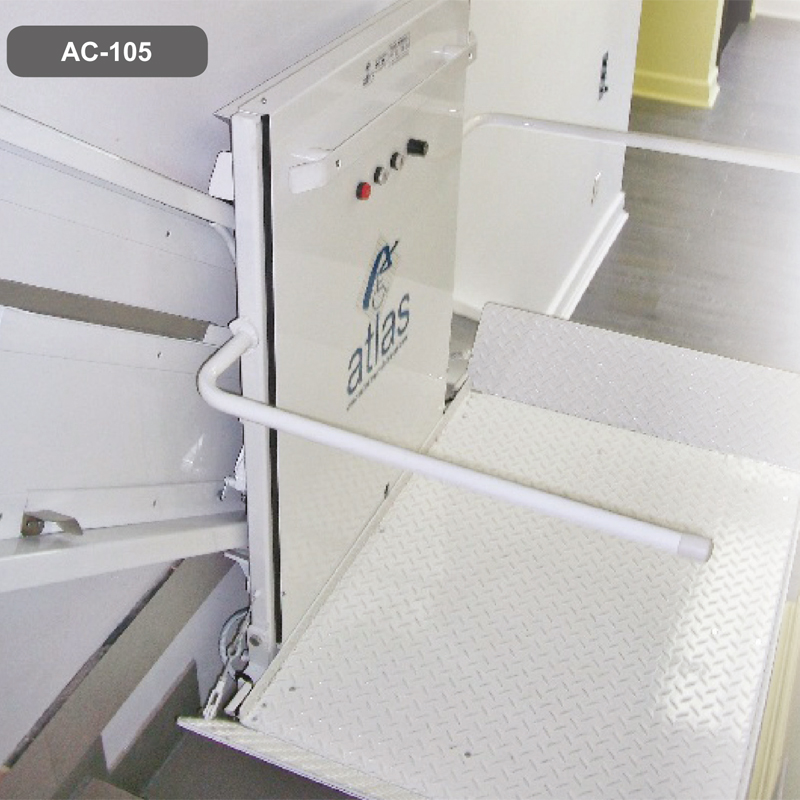

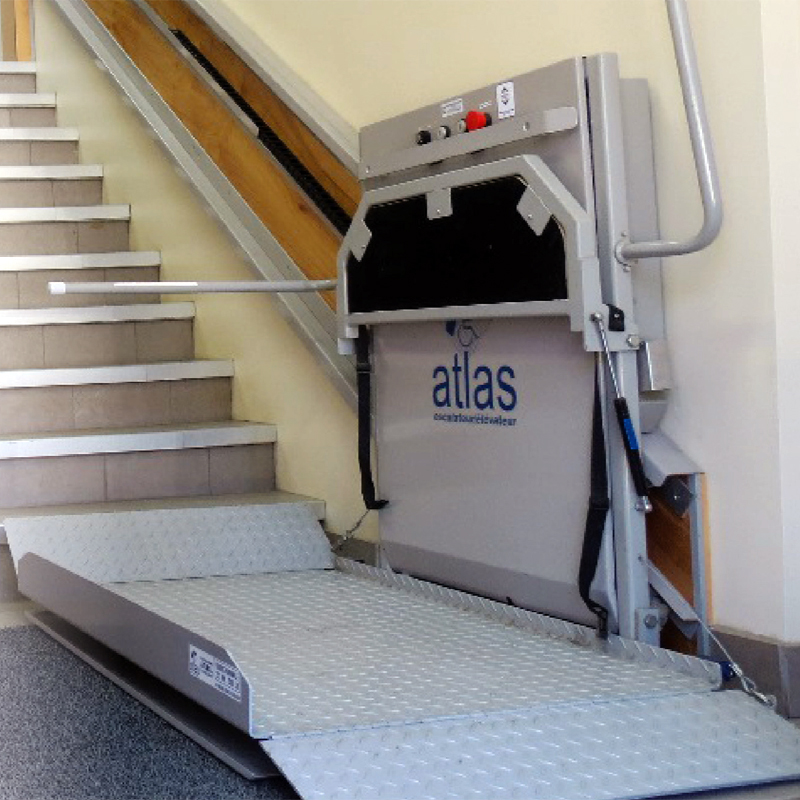

Atlas inclined platform lift allows access in straight stairways, with smoothness and softness. AC-105 inclined wheelchair lift will transport user in residential, public or commercial places from one level to another, with greater autonomy of the occupant. The floor, the flaps and the protection arms comes all motorized with the standard platform. AC-105 controller and panel has industrial grade components from Télémécanique Ramp which is varnished from natural wood and color matched to existing staircase.

• Obstacles detector ensures safety at all times.
• Made to last as it is made with first quality components.
• Fits in small staircases up to 36 inches and also it doesn’t require any mechanical room, all the mechanism fits in a small column at the upper landing.
• Smoother and more stable chain and sprocket mechanism and the C shape rails allow the platform to be way more stable and it offers smoother movements.

Features

• Fast installation
• Motor – DC, 24 volts
• Parachute type brakes
• Anti-skid floor surface
• Maximum load capacity 550 lbs.
• Maximum capacity – one person in a wheelchair
• No mechanical room with chain and sprocket option
• A motorized retraction system is available as an option
• Nominal speed – 0.08 m/s (16 ft/min) ou 0.1 m/s (19 ft/min)
• Drive type : Steel cable on winding drum or chain and sprocket
• Floor and side protector arms can be manually retracted as standard feature
