Description

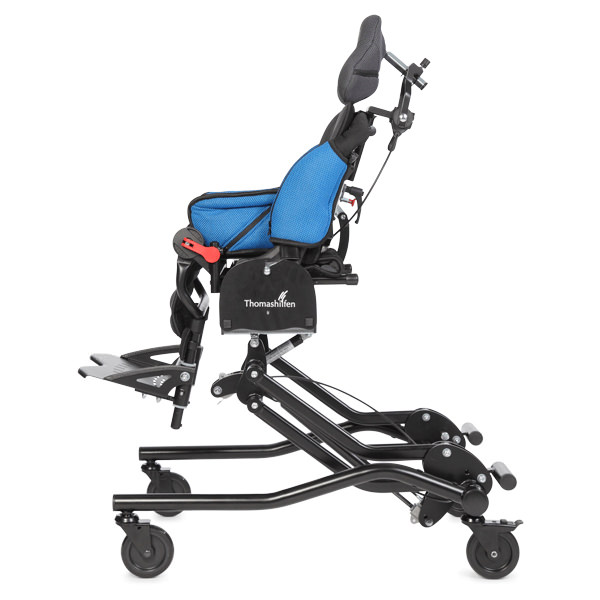

Thomashilfen EASyS modular S seating system (Q-chassis) is a high-low indoor base/feeder therapy frame which provides more positioning support to the children. The short back and the separate headrest offer more freedom of movement for the upper body and arms.
Features
- Height/ tilt adjustable
- Provides more positioning support
- Allows more freedom of movement
- Easy height and seat tilt-in-space adjustment with gas spring
- 140° resting position offers comfort and relief for the child’s spine
EASyS modular S seating system comes standard with:
- Seat
- Back
- Recline
- Bracket
- Calf strap
- Q-chassis
- Hip supports
- Adapter for Q-chassis
- Choice of upholstery colors
- Seat depth/width adjustable from underneath
- Articulated footplate height & angle adjustable
- Knee angle adjustment with quick release lever
- Different head rest options for more head control
Specifications
| EASyS modular S Specifications – Seat | ||
| Size 1 | Size 2 | |
| Seat depth | 7.5″ – 11.8″ | 10.6″ – 15″ |
| Seat width | 7.5″ – 10.2″ | 10.6″ – 13.8″ |
| Floor to seat | 19″ | 19.5″ |
| Back height (without head rest) | 11” – 16.5″ | 13.4″ – 20.9″ |
| Lower leg length | 7.3″ – 12″ | 7.3″ – 14.6″ |
| Hip angle | 90° to 140° | 90° to 140° |
| Knee angle | 90° to 180° | 90° to 180° |
| Foot angle | 78° to 100° | 78° to 100° |
| Turning range of seat | 180° | 180° |
| Size of hip guide (w x h) | 9″ x 4.7″ | 11.4″ x 4.3″ |
| Size of foot rest (w x d) | 11″ x 7.1″ | 12.6″ x 8.3″ |
| Weight | 19.4 lbs. | 24.3 lbs. |
| Carrying capacity (seat) | 77.2 lbs. | 88.2 lbs. |
| Q chassis hi/low base | |
| Seat tilt-in-space | -7° to +31° |
| Overall dimensions (l x w x h) (including seat unit) | 29-7/8″ x 21¼” x (9¾” – 24-3/8″) |
| Seat height | 11-3/8″ – 27¼” |
| Adapter height | 8¼” – 23-5/8″ |
| Wheel size swivel wheels (front) | 4″ |
| Chassis weight | 29.75 lbs. |
| Maximum carrying capacity (including seat) | 110.25 Ibs. |
