ShowerBuddy SB1

ShowerBuddy is an ergonomic shower transfer system designed and engineered in New Zealand. The ShowerBuddy alleviates heavy lifting and unnecessary transfers. It also eliminates slip hazards and costly construction while maintaining the privacy and dignity of the patient. This unique system allows for the patient to toilet and shower in one easy trip, utilizing only one transfer.

Description

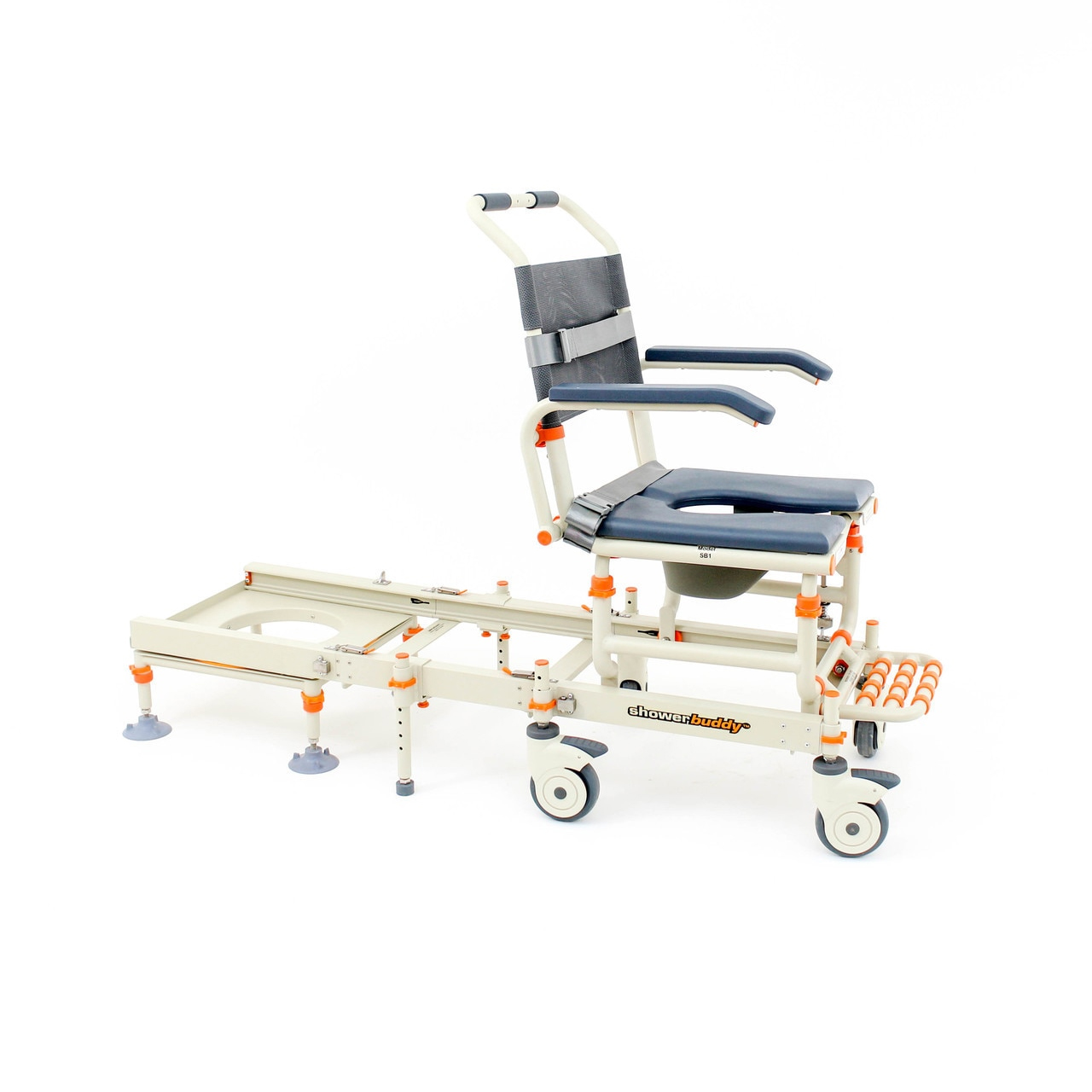

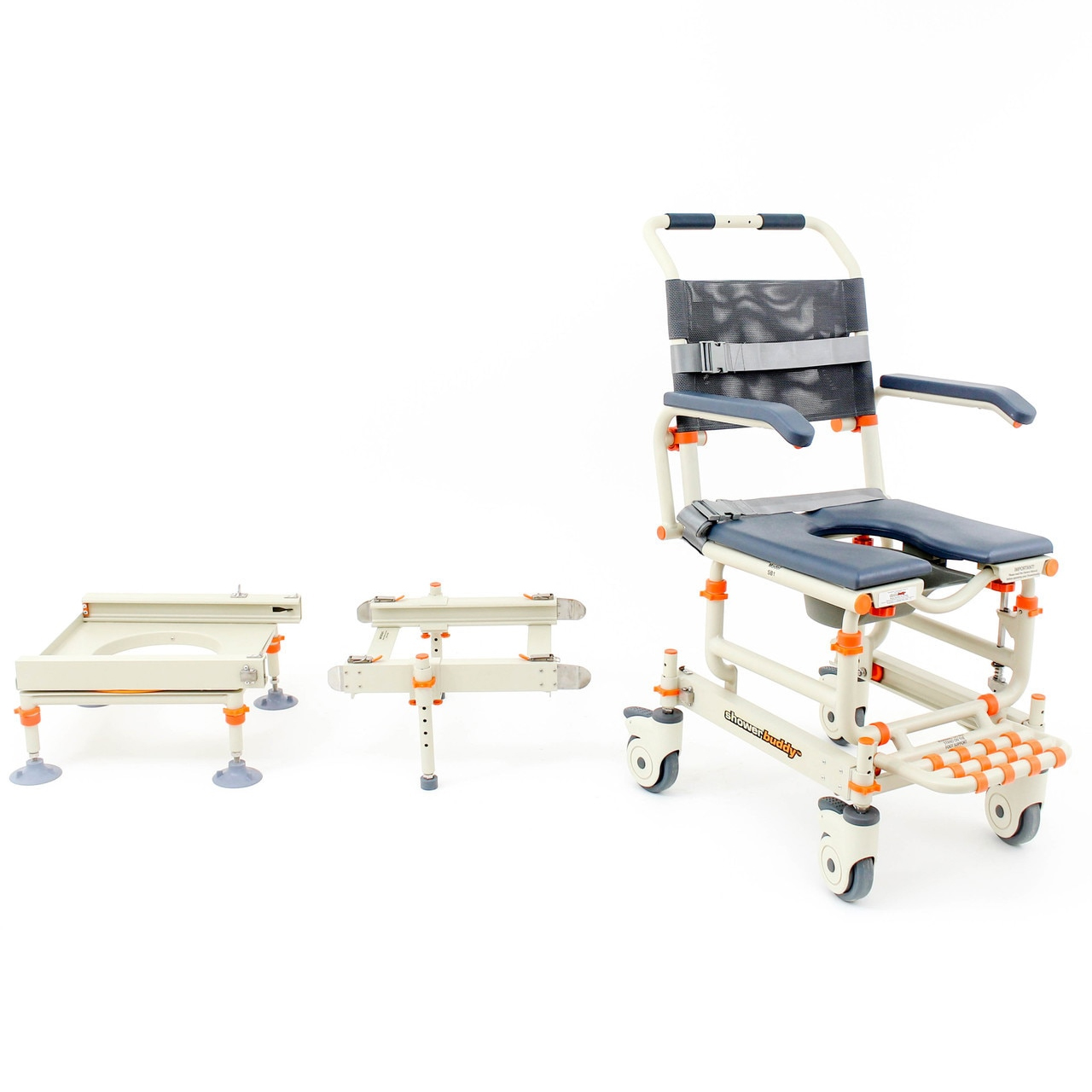

The ShowerBuddy SB1 shower transfer system is a remodel alleviating heavy lifting and multiple transfers for toileting and showering. This chair is separated into three sections; rolling base (shower chair), bridge and shower base. The rolling base rolls around the house like a wheelchair allowing patient to easily transfer and then roll right over a toilet (certain toilets). Once completed with toileting the rolling base can connect to the bridge and then onto the shower base allowing the chair to slide into the shower. Once inside the shower, the bridge disconnects and the shower base turns allowing the user to face the shower controls.


Features

  • Built-in Commode 300 lbs. weight capacity
  • Heavy-duty version available
  • Height-adjustable
  • Rust-resistant
  • Mold-resistant 360-degree swivel
  • Tool-less assembly



Specifications





PRODUCT SPECIFICATIONS



WEIGHTS & DIMENSIONS

Weight Limit 350lbs (160kg)
Rolling Base (W x D) 18.4″ x 22″ (467mm x 560mm)
Rolling Base w Footrests (W x D) 18.4 x 26.5 (467mm x 675mm)
Overall Outer Armrest Width 22.5″ (570mm)
Inner Armrest Width 18.7″ (475mm)
Inner Width Between Main Legs 14.9″ (380mm)
Backrest Width 18″ (460mm)
Backrest Height from Cushion 17″ (440mm)
Toilet Height Clearance(Max) 23.2″ (590mm)
Standard Bridge Length (Can Be Customized) 16″ (405mm)
Seat Cushion W x D 17.7″ x 16.5″ (450×20)
Seat Cushion Height from Floor (Adjustable) 21.5″ – 26.7 (550mm – 680mm)
Seat Cushion Opening (W x L) 6.8″ x 13″ (175mm x 335mm)
Shower Base (Over Suction Cup Feet) 19.2″ x 19.2″ (490mm x 490mm) W x D


PRODUCT FEATURES

DETAILS

Armrests Removable / Lockable / Flip-back
Height Height Adjustable
Frame Material Corrosion resistant Aluminum frame (Grade 6061 T6)
Misc. Parts Stainless steel parts and hardware (Grade 304)
Rotation Rotates 360 degrees inside shower (subject to space) – Footrest – fold-up
Safety Belts Lap & Chest Belts
Caster Wheels 5” (125mm) , Lockable
Commode Removable Commode System
