Handicare Helena Freestanding lift stands

Helena:
A freestanding traverse system for users weighing max 285 kg/628 lbs

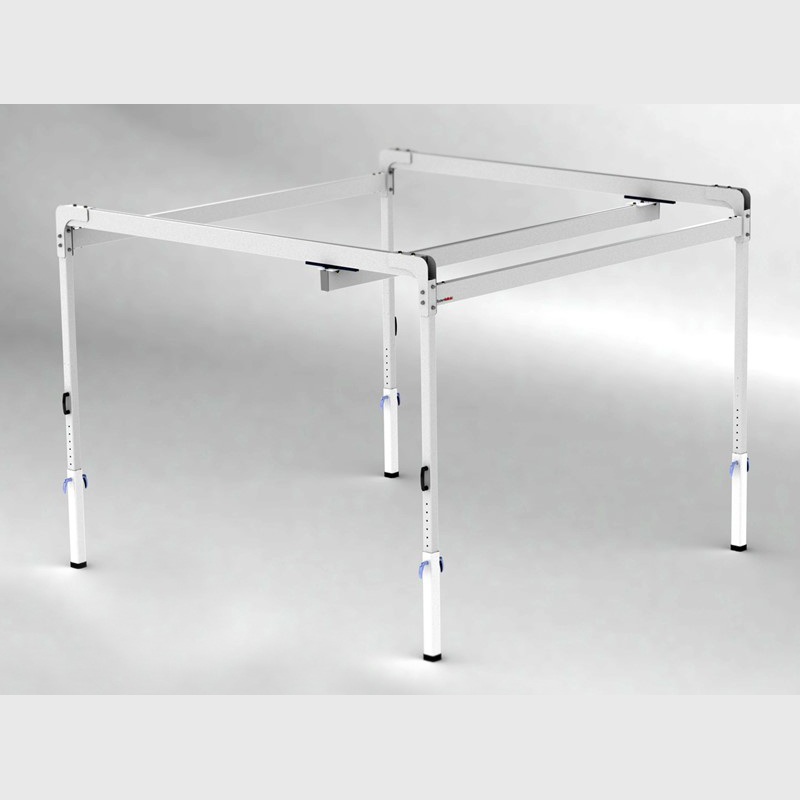

Helena is a safe, high-performance freestanding lift stand with a cross-rail. Together with a ceiling lift unit, Helena functions as a stationary (x-y) lift system.

The cross-rail is suspended in trolleys and can travel sideways in fixed rails along the total width of the lift stand. This way, the ceiling lift unit can travel in all directions and be used anywhere in the lifting area, both for very low and very high lifting.

Helena is an ideal solution for occasional lifting needs in a specific location, or where it is not possible to install a permanent rail system on the ceiling. Should the lifting needs change, the lift stand can also be disassembled and moved to other locations.

Category:

Description

Low weight and large loading capacity

Helena is made of aluminium, which makes the lift stand light in relation to its large loading capacity; up to 285 kg/628 lbs. The design is both compact and discreet while at the same time making Helena one of the sturdiest freestanding lift stands on the market.

Three models provide lifting areas of different sizes

Helena is available in three models with different measurements providing lifting areas of different sizes. For all models, the height can be set at ten different positions to provide the optimal lifting range according to the specific situation and lifting needs.

All models of Helena are supplied complete and ready for mounting and use. They can be used with all Handicare ceiling lift units.

Features

  • Freestanding traverse system, for occasional lifting needs in a specific location or where it is not possible to install a permanent rail system on the ceiling
  • Easy to assemble
  • Can be disassembled and moved to other locations should the lifting needs change
  • Aluminium for low weight
  • Compact and discreet design
  • Strong and stable, for users weighing up to 285 kg/628 lbs
  • Three models provide lifting areas of different sizes
  • To provide the optimal lifting range, the height can be set at 10 positions with 50 mm/2″ distance
  • Safe and convenient lifting solutions for all settings and users
  • Ceiling lift units and many accessories for safe, easy and individually adapted lifting of users in most transfer situations are available in the Handicare Lifting range

Specifications

Art. no. 50300009 50300010 50300011
Name Helena 3×3 Helena 4×3 Helena 5×4
Description Freestanding lift stand with cross rail, complete, 3157 x 3104 mm (w x l) Freestanding lift stand with cross rail, complete, 4157 x 3104 mm (w x l) Freestanding lift stand with cross rail, complete, 5157 x 4104 mm (w x l)
Unit 1 set 1 set 1 set
SWL 285 kg 285 kg 285 kg
Material Aluminium Aluminium Aluminium
Total length 3104 mm 3104 mm 4104 mm
Total width 3157 mm 4157 mm 5157 mm
Total height 2040-2490 mm 2040-2490 mm 2040-2490 mm
Total weight 126 kg 137 kg 168 kg
