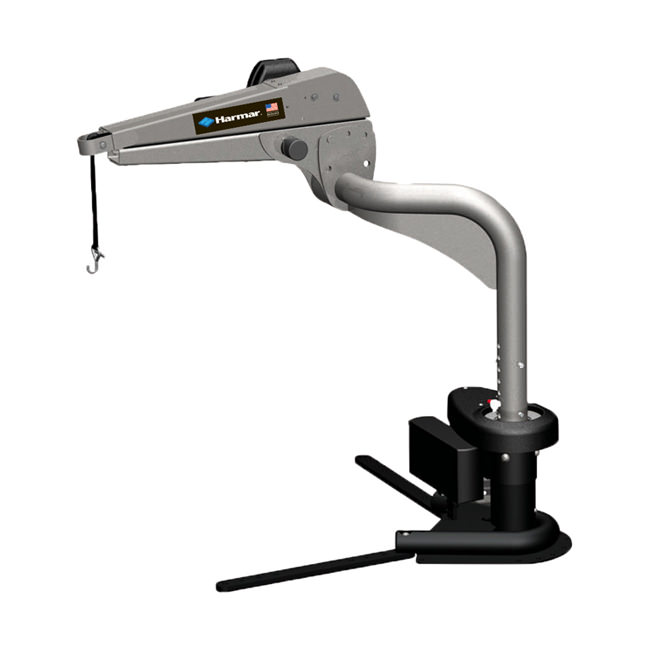

Harmar AL435T Tailgater 3-Axis Truck Lift

Harmar AL435T Tailgater 3-axis truck lift allows your power chair or scooter to be lifted from the vehicle cargo area and positioned beyond the lowered tailgate or on the sidewalk next to your vehicle. 3-axis truck lift has adjustable limit switches which automatically stop rotation to prevent lift contact with your vehicle.

SKU: HRAL435T Category:

Description

Harmar AL435T tailgater 3-axis truck lift provides motorized rotation feature, powered boom extension, offset geometry and increased lifting capacity. Tailgater truck lift provides “Action Base” design which allows a full 180° of adjustment on the lift base mounting legs. Truck lift has variable column height, arm adjustments and uniquely shaped adjustable base assure custom fit.



Features



  • Docking device included
  • Extend reach beyond tailgate
  • Either curb side or over tailgate
  • Available for passenger side only
  • Weather resistant for exterior environments
  • Same design as equalizer 3 with upgraded offset arm
  • Ideal for Pick-up trucks where a power wheelchair or scooter need to be loaded/unloaded



Specifications



Harmar AL435T tailgater 3-axis truck lift
Installed weights 81 lbs.
Lifting weight capacity 400 lbs.
Adjustable boom height 31″ – 39″
Adjustable boom length 21″ – 33″
Adjustable boom pitch 0° – 35°
